Ball valve Q41-F-16/25/40

Features

Floating sphere structure, driven manually.
Adopting elastic V-shaped polytetrafluoroethylene composite packing, the sealing performance is enhanced with the increase of medium pressure.
The torque is stable and the switch is flexible.
The handle is immer

Technical Parameters


Technical parameters:


nominal pressure MPa 1.6 2.5 4.0
Shell Test Pressure MPa 2.4 3.75 6.0
Seal test pressure MPa 1.76 2.75 4.4
Low pressure sealing pressure MPa 0.6
Temperature -40℃~+150℃
Applicable Medium Ammonia, liquid ammonia, vinyl chloride, carbon dioxide, etc
Flange standard GB/T9113-2000
Inspection standards JB/T9092-1999

Main component materials:

valve body valve stem sphere combined packing gasket handle
WCB 20Cr13 ZG1Cr18Ni9 PTFE PTFE 20#

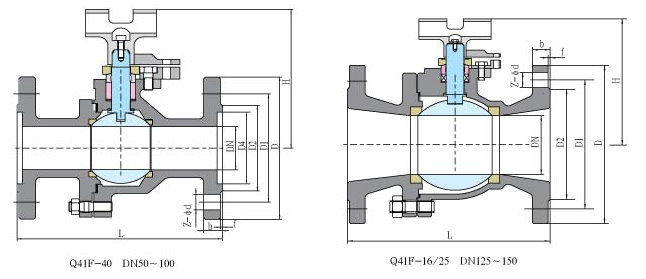

ball valveQ41F nominal pressurePN1.6MPa External dimensions and connection dimensions

DN L D D1 D2 D3 bulge D4 concave b f Z-Φd L0 H
50 200 165 125 99 87 88 20 4 4-Φ18 300 154
65 222 185 145 118 109 110 20 4 4-Φ18 300 167
80 260 200 160 132 120 121 20 4 8-Φ18 350 175
100 305 220 180 156 149 150 22 4.5 8-Φ18 350 214
125 320 250 210 184 175 176 22 4.5 8-Φ18 400 211
150 363 285 240 211 203 204 24 4.5 8-Φ22 400 271

ball valve Q41F nominal pressurePN2.5、4.0MPa External dimensions and connection dimensions

DN L D D1 D2 D3凸 D4凹 b f Z-Φd L0 H
50 220 165 125 99 87 88 20 4 4-Φ18 300 154
65 250 185 145 118 109 110 22 4 8-Φ18 300 167
80 280 200 160 132 120 121 24 4 8-Φ18 350 175
100 320 235 190 156 149 150 24 4.5 8-Φ22 350 214
125 320 270 220 184 175 176 26 4.5 8-Φ26 400 211
